Precision clamping plate Big block Series
steel

precision clamping plate
precision clamping plate
precision clamping plate
Add to favorites
Compare this product


Characteristics

Type
precision
Material
steel

Description

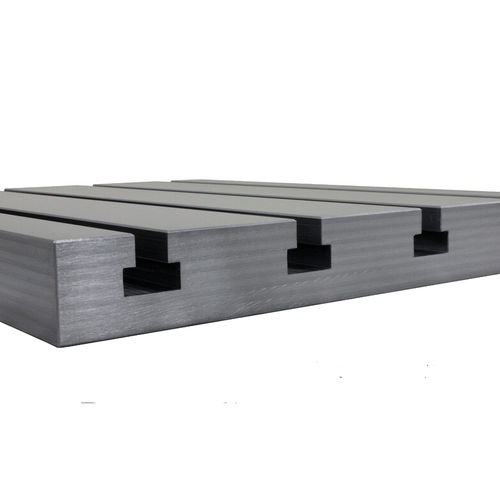

Here you can find T-slot plates made of 50mm steel (C45). As a result of the smooth underside, these can be simply suctioned on a vacuum table or directly attached on a machine in the classical way. This enables you to mount vises, clamping towers, mounting angles and everything else you wish to clamp on a T-slot plate. Steel T-slot plate 2020 "Big Block" Measure: 200 x 200 mm T-slot distance: 100 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.01 mm /150 mm Steel T-slot plate 3020 "Big Block" Measure: 300 x 200 mm T-slot distance: 100 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.01 mm /150 mm Steel T-slot plate 4020 "Big Block" Measure: 400 x 200 mm T-slot distance: 100 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.01 mm /150 mm Steel T-slot plate 3030 "Big Block" Measure: 300 x 300 mm T-slot distance: 100 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.01 mm / 150mm Steel T-slot plate 5020 "Big Block" Measure: 500 x 200 mm T-slot distance: 100 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.01 mm /150 mm Steel T-slot plate 6020 "Big Block" Measure: 600 x 200 mm T-slot distance: 100 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.01 mm /150 mm
