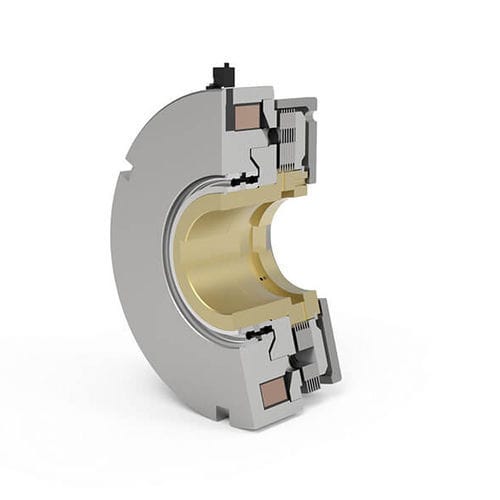

Multiple-disc clutch ERD A
electromagnetic

Multiple-disc clutch - ERD A - STROMAG - electromagnetic
Multiple-disc clutch - ERD A - STROMAG - electromagnetic
Add to favorites
Compare this product


Characteristics

Type
multiple-disc
Operation
electromagnetic
Torque

Max.: 4,800 Nm
(3,540.2983 ft.lb)

Min.: 25 Nm
(18.4391 ft.lb)

Rotational speed

Max.: 5,000 rpm
(31,415.93 rad.min-1)

Min.: 1,900 rpm
(11,938.05 rad.min-1)

Description

Electromagnetic actuated Multi-Disc clutch with bearing supported coil body and plug connection. Designed for applications with electromagnetic-flodded discs to realize a compact design. Usable in complete sector of machine manufacture and gears. MARKETS Bridge and Dam Crane and Hoist Farm and Agriculture Metals Gear Manufacturers General Machinery FEATURES Compact design Simple handling High work capacity Only for wet running applications Bearing supported coil body and plug connection Slight gear backlash in the discs Active oil cooling though shaft possible customization possible on request
