Disc clutch KMS-THC
multiple-discmechanicalhydraulic

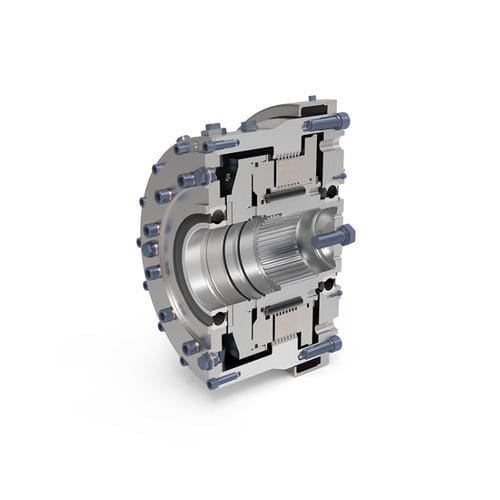

Disc clutch - KMS-THC - STROMAG - multiple-disc / mechanical / hydraulic
Disc clutch - KMS-THC - STROMAG - multiple-disc / mechanical / hydraulic
Add to favorites
Compare this product


Characteristics

Type
disc, multiple-disc
Operation
mechanical, hydraulic
Torque

Min.: 1,400 Nm
(1,032.587 ft.lb)

Max.: 22,500 Nm
(16,595.1484 ft.lb)

Rotational speed

Min.: 1,900 rpm
(11,938.05 rad.min-1)

Max.: 2,100 rpm
(13,194.69 rad.min-1)

Description

Clutch to engage/disengage the Thruster-Propulsion-System, arranged between the diesel engine and the thruster gearbox. High torque with low dimensions and hydraulically operated. Stand-alone version which means outside of the thruster gearbox. Mounting position in the machine room or “on Deck” as well. Coming-Home function in case of emergency. KMS...THC Series has been designed for use in Thruster-Propulsion-Systems all over the world. Various sizes are available. MARKETS Marine Mining and Conveyors FEATURES No internal oil cooling necessary Clutch housing on bearings for applications outside of the gears Clutch in protective closed housing Direct connection e.g. of a PTO Long service life of the discs Low maintenance, any disc wear automatically compensated by piston travel Remote control capability Continuous increase of oil pressure, and so shockless switching Mechanical emergency operation device on failure of hydraulic oil supply
