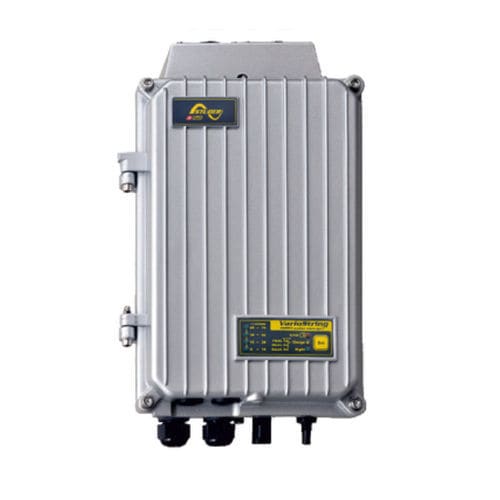

Solar battery charger controller VS-70

MPPT

The VS-70 is recommended for PV capacities up to 4.2kWp, and charges the battery with a maximum current of 70A. The solar modules are connected in series to form one single string (up to 600V) connected to the VS-70, all this without special tools and with reusable connectors. The battery management parameters can be adjusted on the inside of the device. On the outside, an LED display indicates the battery charge current and state of the VS-70. Given the specific system needs, several accessories can be added such as the Remote Control and Programming Centre RCC-02/03, a module with 2 auxiliary contacts ARM-02, a battery temperature sensor BTS-01, a battery status processor BSP-500/1200, or one of the communication sets Xcom-LAN/GSM/SMS. The VS-70 has a remote entry which provides the option to control the system from several parameters that can be programmed with the RCC-02/03. The combination of the VS-70 and Xtender series is the ideal solution for hybrid systems with several power sources such as solar PV, genset, etc.…
