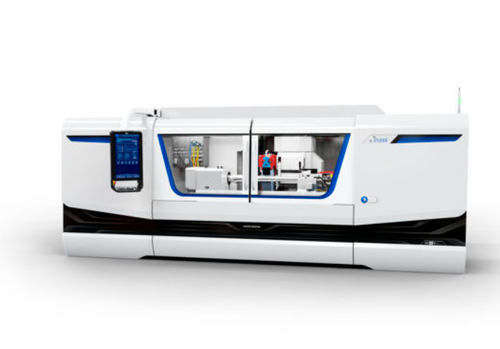

Large workpiece grinding machine S41

external cylindricaluniversalCNC

The S41 is a CNC universal cylindrical grinding machine for large workpieces. It has distances between centres of 1000mm (40") / 1600mm (63") and centre heights of 225mm (8.8") / 275mm (10.8"). It can machine workpieces with a maximum weight of 250kg (550lbs). The S41 is a CNC universal cylindrical grinding machine of the latest generation. It boasts many technical features, such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, extremely fast direct drive of the B-axis, an even larger selection of wheelhead variants etc. Hardware: StuderGuide® guide system with linear drive Turret wheelhead with direct drive and 0.00005°resolution Complete machining with up to four grinding wheels C-axis for the workhead for form and thread grinding Full enclosure with two sliding doors Granitan® S103 mineral casting machine base Software: Very simple operation and programming thanks to StuderWIN StuderGRIND programming software for the creation of grinding anddressing programs directly on the machine control, or on an externalPC Reduced setup and resetting times with STUDER Quick-Set Standardized interfaces for loader and peripheral devices External programming station with all machine software options in StuderWINprogramming
