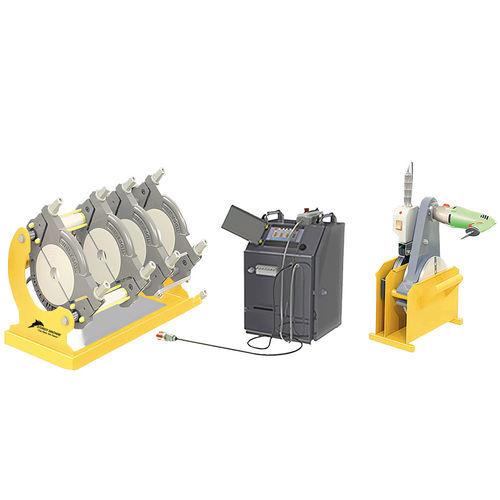

Butt welding machine Sm160

automaticbenchtopfor plastics

CNC SM160 Butt Welding Machine Body With two movable and two fixed clamps on it, it supports the plastic pipes to be welded and provides fixation and centering. Hydraulic pressure force is applied to the system. With two pistons on the carrier shaft, this force drives the moving clamps forward and backward, providing the movement required for the welding process to take place. CNC SM160 Butt Welding Machine Trimmer It is the butt welding machine element that performs the butt cleaning of the pipes fixed and centered on the main body with two rotating blades on the right and left sides and the cutting blades on these blades before the heating process and makes them ready for heating. The rotary movement of the trimmer is provided by the motor and reducer group. CNC SM160 Butt Welding Machine The trimmer unit creates burr-free and parallel pipe surfaces. CNC SM160 Butt Welding Machine Control Unit The electrical and hydraulic control unit transmits the electricity required for the operation of the machine to the heater and trimmer and the hydraulic pressure to the main machine. The control unit is operated by hand control. There are four buttons and a switch on the hand control. Buttons move the movable clamps forward and backward. The switch turns on the trimmer.
