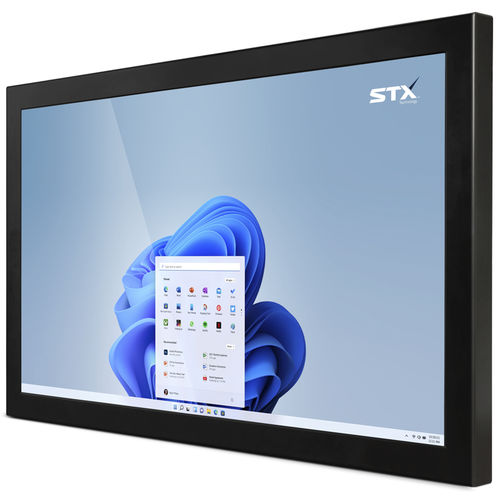

LCD panel PC X7600 serieswidescreenPCAP capacitive touch screencapacitive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, widescreen, PCAP capacitive touch screen, capacitive touch screen, resistive touch screen
- Display size
- 15.6", 21.5", 18.5", 24", 10.1", 13.3"
- Resolution
- 1920 x 1080, 1280 x 800
- Processor
- Intel® Celeron® 6305E, Intel® Core™ i5-1135G7, Intel® Core™ i7-1165G7, Rockchip RK3588S
- Operating system
- Android, Windows 10, Windows 11 Pro
- Construction
- fanless, aluminum frame
- Applications
- industrial, for IoT applications, for the food industry, for the mining industry
- Protection level
- waterproof
- Integrated peripheral
- with keyboard
- Other characteristics
- all-in-one, wireless, high-performance, high-brightness
Description
Model Options
All-in-One (AIO) or Touch Monitor
Touch Type
Resisitive Touch | Projected Capacitive Touch
Display Sizes
10.1" | 13.3" | 15.6" | 18.5" | 21.5" | 24"
Display Brightness
400 nits | 600 nits High Brightness | 1000 nits High Brightness
CPU
Intel® Celeron® 6305U | Intel® Core™ i5-1135G7 | Intel® Core™ i7-1165G7 | ARM RK3588S
Memory
8GB | 16GB | 24GB | 40GB
Hard Drive
120GB | 256GB | 512GB | 1TB
Operating systems
Windows 10 LTSC | Windows 11 Professional | Linux | Android 13
Keyboard
Optional
Video
Mini DP | HDMI Output
Network
1 Ethernet optional up to 3 Ethernet
Optional WiFi 6 Dual Band | Bluetooth
Optional 3G/4G GPS
Optional CANBus
Optional RS485
Optional RS422
USB
1 USB 3.0 optional upto 3 USB 3.0
RS232
Optional up to 4 RS232
Power Input
10~30VDC
Mounting
Panel Mount | VESA Mount
Material Grade
Aluminium
Finish
Matte Black | Safety Yellow | Saftey Orange
Model Sizes
X7610W | 10.1" | 1280x800 (16:9)
X7613 | 13.3" | 1920x1080 (16:9)
X7616 | 15.6" | 1920x1080 (16:9)
X7618 | 18.5" | 1920x1080 (16:9)
X7622 | 21.5" | 1920x1080 (16:9)
X7624 | 24" | 1920x1080 (16:9) or 1920x1200 (16:10)
