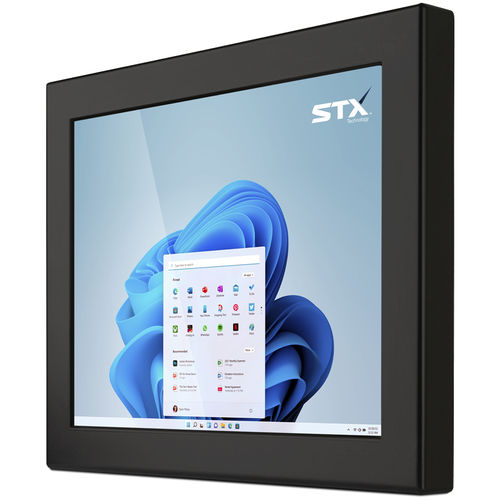

LCD panel PC X7600 seriesPCAP capacitive touch screencapacitive touch screenresistive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, PCAP capacitive touch screen, capacitive touch screen, resistive touch screen, multitouch screen
- Display size
- 15", 19", 17", 12.1", 8.4", 10.4"
- Resolution
- 1024 x 768, 1280 x 1024, 800 x 600
- Processor
- Intel® Celeron® 6305E, Intel® Core™ i5-1135G7, Intel® Core™ i7-1165G7, Rockchip RK3588S
- Operating system
- Android, Windows 10, Windows 11 Pro
- Construction
- metal chassis, fanless, aluminum frame
- Mounting
- wall-mounted, embedded
- Applications
- industrial, for IoT applications, for the food industry, for the mining industry
- Protection level
- waterproof
- Integrated peripheral
- with keyboard
- Other characteristics
- all-in-one, high-brightness
Description
Model Options
All-in-One (AIO) or Touch Monitor
Touch Type
Resisitive Touch | Projected Capacitive Touch
Display Sizes
8.4" | 10.4" | 12.1" | 15" | 17" | 19"
Display Brightness
400 nits | 600 nits High Brightness | 1000 nits High Brightness
CPU
Intel® Celeron® 6305U | Intel® Core™ i5-1135G7 | Intel® Core™ i7-1165G7
Memory
8GB | 16GB | 24GB | 40GB
Hard Drive
120GB | 256GB | 512GB | 1TB
Operating systems
Windows 10 LTSC | Windows 11 Professional | Linux | Android 13
Keyboard
Optional
Video
Mini DP | HDMI Output
Network
1 Ethernet optional up to 3 Ethernet
Optional WiFi 6 Dual Band | Bluetooth
Optional 3G/4G GPS
Optional CANBus
Optional RS485
Optional RS422
USB
1 USB 3.0 optional upto 3 USB 3.0
RS232
Optional up to 4 RS232
Power Input
10~30VDC
Mounting
Panel Mount | VESA Mount
Material Grade
Aluminium
Finish
Matte Black | Safety Yellow | Saftey Orange
Model Sizes
X7608 | 8.4" | 800x600 (4:3)
X7610 | 10.4"| 1024x768 (4:3)
X7612 | 12.1"| 1024x768 (4:3)
X7615 | 15" | 1024x768 (4:3)
X7617 | 17" | 1280x1024 (5:4)
X7619 | 19" | 1280x1024 (5:4)
