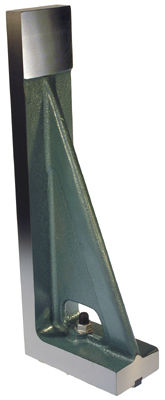

Clamping fastening bracket 920 series
ironcast ironvertical

clamping fastening bracket
clamping fastening bracket
Add to favorites
Compare this product


Characteristics

Applications
clamping
Material
iron
Other characteristics
cast iron, vertical

Description

Made from class 35-40 cast iron. Furnished with two precision 11/16" aligning keys and one T-bolt with nut. Narrow width offers convenient means of clamping where table room is at a minimum. Vertical face square to the base within 0.0002" per 12". Key slot square with the vertical face within 0.0002". Inside face parallel to the vertical face within 0.0002" on the 9201 model and 0.0003" on the 9202. Available in either a ground or scraped finish.
