Standard pole magnetic chuck MS series
sine tablesquarefor large parts

Standard pole magnetic chuck - MS series - Suburban Tool, Inc - sine table / square / for large parts
Standard pole magnetic chuck - MS series - Suburban Tool, Inc - sine table / square / for large parts
Standard pole magnetic chuck - MS series - Suburban Tool, Inc - sine table / square / for large parts - image - 2
Add to favorites
Compare this product


Characteristics

Technology
standard pole
Type
sine table, square
Applications
for large parts

Description

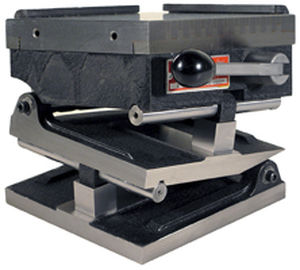

MAGNA-SINE™ magnetic sine plates are equipped with extremely powerful ceramic magnet chucks. Having stationary magnets in the top plate and a movable magnet core, these chucks provide an average holding power of up to 100 pounds per square inch. This is nearly twice the holding power of a standard chuck! The chucks provide maximum holding of both small & large parts due to a combination fine / standard pole spacing. All but the chuck is made of steel, hardened to Rc 58-60. The swivel block provides full face contact with gage blocks keeping them securely in place. The gage block & hinge rolls are ground and lapped for straightness and roundness. An exclusive locking device inside the hinge roll provides a positive lock with an expanding action. Both screws lock toward the front of the unit, pulling the top plate down on the set-up gage blocks without distortion. The angular accuracy is guaranteed to be within 5 seconds of arc up to 15°, 10 seconds up to 30° and 15 seconds up to 45°. Side and back rails are included. Available hinged as STANDARD (as shown) or OPPOSITE-HAND. Long Form Certification A form showing the advertised sizes and/or tolerances. The actual measurements taken of those sizes and/or tolerances. A statement that the standards used to measure the tool are traceable to the National Institute of Standards and Technology. Short Form Certification A form certifying that the specified product met manufacturer's specifications before leaving our factory.
