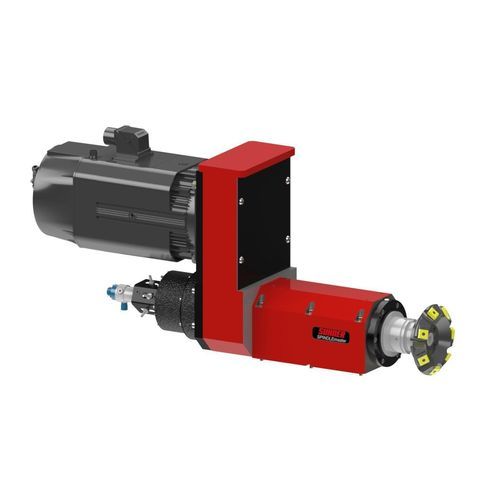

Drilling spindle MAX 100 CODEMmachiningmillingtapping
Add to favorites
Compare this product
Characteristics
- Function
- drilling, machining, milling, tapping, tightening
- Drive system
- motorized, belt-driven
- Other characteristics
- with automatic tool changer
- Rotational speed
5,000 rpm
(31,415.93 rad.min-1)- Diameter
65 mm
(2.6 in)
Description
Precision machining spindle for highest demands on concentricity, speed and performance with tool change system.
Spindle nose ISO40 / ISO50 / HSK100
Transmittable torque 1000 Nm
Concentricity 0.01
Servo motor on request
Driven by timing belt
Preloaded angular contact bearings
Pneumatic or hydraulic cylinder for toolholder release
Weight without motor 172 kg
Color / RAL 5012
Catalogs
No catalogs are available for this product.
