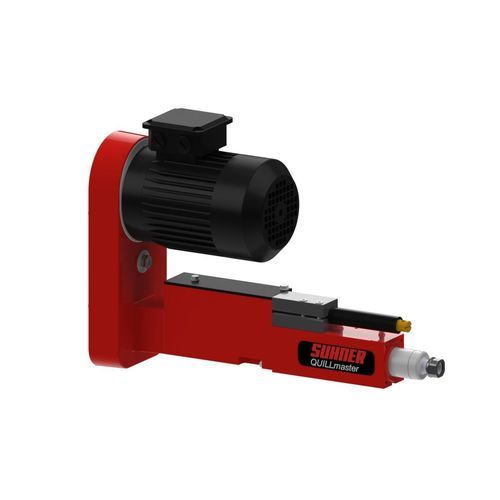

1-axis machining unit BEM 6with pneumatic feed
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis
- Specifications
- with pneumatic feed
Description
DESCRIPTION
Our BEM 6, with pneumatic feed and integrated hydraulic regulation, has been specifically designed for precise drilling work and is ideal for industrial applications requiring high precision and efficiency.
TECHNICAL DATA
Total stroke 80 mm
Working stroke 75mm
Max. Drilling capacity (HSS/St-60) 6mm
Feed force 700N
Speed range at 50Hz 550 - 7730 min-1
Operating pressure 5 - 7 bar
Max. Permissible speed 10000 min-1
Motor power at 50Hz 0.37 kW
Tool holder ER16 / ST16
Weight / color 16 kg / RAL 5012
Concentricity 0.02
Poly-V belt drive J8
Normal voltage at 50Hz 230 / 400 V
VIDEO
Catalogs
BEM 6
52 Pages
