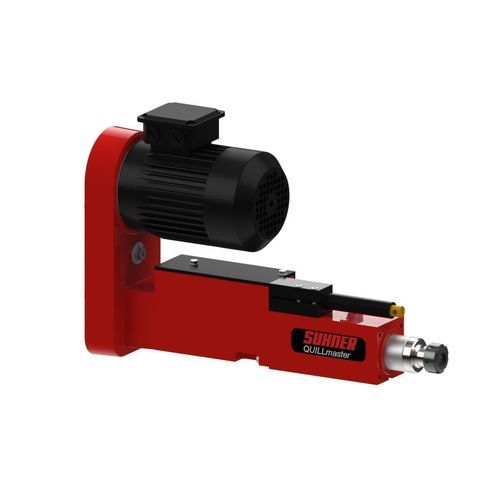

1-axis machining unit BEM 12with pneumatic feed
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis
- Specifications
- with pneumatic feed
Description
DESCRIPTION
Our BEM 12, with pneumatic feed and integrated hydraulic regulation, has been specifically designed for precise drilling work and is ideal for industrial applications requiring high precision and efficiency.
TECHNICAL DATA
Total stroke 80 mm
Working stroke 75 mm
Max. Drilling capacity (HSS/St-60) 12mm
Feed force 1470 N
Speed range at 50Hz 90 - 7730 min-1
Operating pressure 5 - 7 bar
Max. Permissible speed 10000 min-1
Motor power at 50Hz 0.55 / 0.75 kW
Tool holder ER25 / ST28
Weight / color 25 kg / RAL 5012
Concentricity 0.02
Poly-V belt drive J8
Normal voltage at 50Hz 230 / 400V
