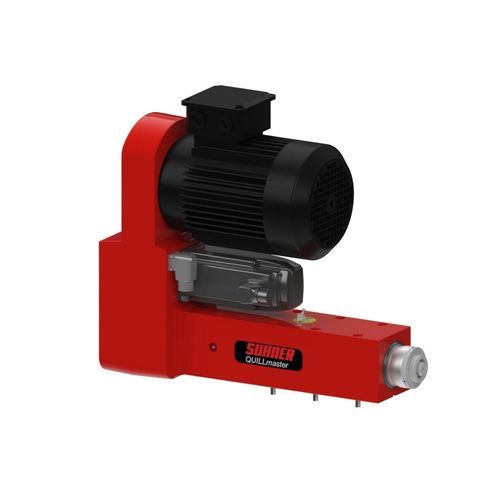

CNC machining unit BEA 16 series

1-axis

DESCRIPTION The BEA 16 is an autonomous, freely programmable quill unit equipped with a servo-controlled feed axis for maximum precision. Including control, it offers a flexible solution for demanding machining processes. With its programmable control, it can be seamlessly integrated into automated systems and allows precise drilling up to Ø 16 mm in various materials. TECHNICAL DATA Total stroke 140 mm Working stroke 135 mm Max. Drilling capacity (HSS/St-60) 16 mm Feed force 2700 N Speed range at 50Hz 250 - 5000 min-1 Max. Permissible speed 5000 min-1 Motor power at 50Hz 1.5 kW Tool holder HSK40 Max. Threading performance (HSS/St-60) M12 Transmittable torque 30 Nm Weight / color 50 kg / RAL 5012 Concentricity 0.01 Normal voltage at 50Hz 400 V control SK5
