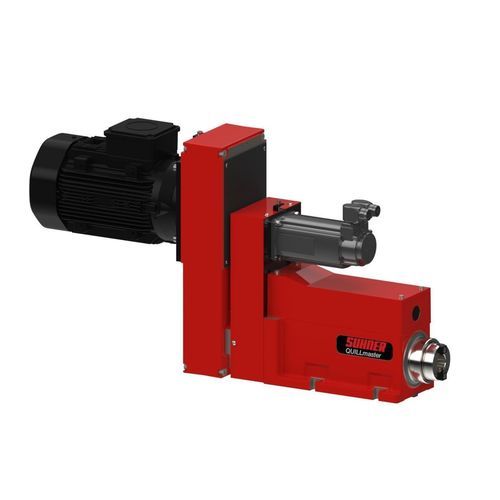

CNC machining unit BEA 25 series

1-axis

DESCRIPTION The BEA 25 is an autonomous, freely programmable quill unit equipped with a servo-controlled feed axis for maximum precision. It offers a flexible solution for demanding machining processes. With its programmable control, it can be seamlessly integrated into automated systems and allows precise drilling up to Ø 25 mm in various materials. TECHNICAL DATA Total stroke 115 mm Working stroke 115 mm Max. Drilling capacity (HSS/St-60) 25 mm Feed force 3400 N Speed range at 50Hz 540 - 5800 min-1 Max. Permissible speed 8000 min-1 Motor power at 50Hz 1.5 / 2.2 / 3.0 kW Tool holder ISO30 / HSK50 Max. Threading performance (HSS/St-60) M20 Transmittable torque 80 Nm Weight / color 58 kg / RAL 5012 Concentricity 0.01 Normal voltage at 50Hz 230 / 460 V
