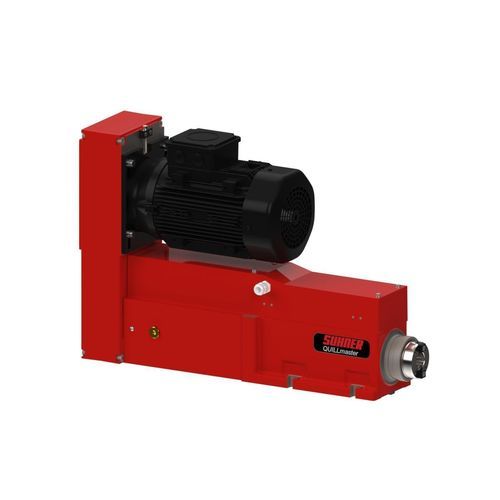

1-axis machining unit BEM 25 Hwith hydraulic feed
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis
- Specifications
- with hydraulic feed
Description
DESCRIPTION
Our BEM 25 H with integrated hydraulic feed has been specifically designed for precise drilling tasks and is ideal for industrial applications where high accuracy and efficiency are required. It allows drilling up to Ø 25 mm in various materials.
TECHNICAL DATA
Total stroke 125 mm
Working stroke 125 mm
Max. Drilling capacity (HSS/St-60) 25 mm
Feed force 15000 N
Speed range at 50Hz 360 - 5800 min-1
Operating pressure 30 bar
Max. Permissible speed 8000 min-1
Motor power at 50Hz 1.5 / 2.2 / 3.0 kW
Tool holder ISO30 / HSK50
Weight / color 68 kg / RAL 5012
Concentricity 0.01
Poly-V belt drive J15
Normal voltage at 50Hz 230 / 460 V
