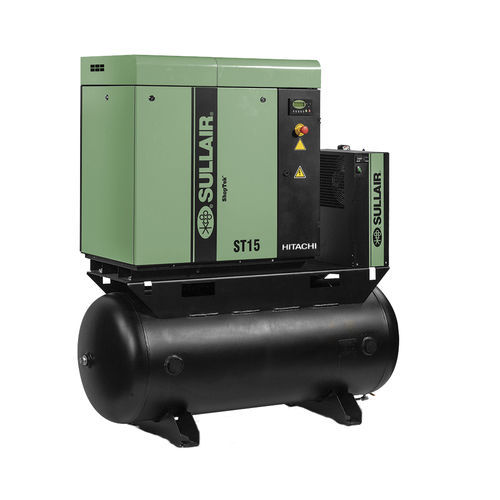

Rotary compressor ShopTek ST
airelectrically-poweredstationary

rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
Add to favorites
Compare this product


Characteristics

Technology
rotary
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Applications
for automobiles
Other characteristics
compact, tank-mounted, cooled
Tank volume

80 gal, 120 gal

Pressure

Max.: 12 bar
(174.05 psi)

Min.: 9 bar
(130.53 psi)

Flow

Max.: 2.2 m³/min
(77.69 ft³/min)

Min.: 0.47 m³/min
(16.6 ft³/min)

Power

Max.: 20 ch
(20 hp)

Min.: 5 ch
(5 hp)

Length

Max.: 2,200 mm
(87 in)

Min.: 826 mm
(33 in)

Width

Max.: 1,260 mm
(50 in)

Min.: 546 mm
(21 in)

Height

Max.: 1,816 mm
(71 in)

Min.: 940 mm
(37 in)

Weight

Max.: 1,822.1 kg
(4,017 lb)

Min.: 237.7 kg
(524 lb)

Description

Sullair ShopTek® shop air compressors redefine industry standards with a simple design providing exceptional reliability and extremely low maintenance. Reliable Sullair Air End Small Footprint Energy-Efficient Design Simple, complex design Small Footprint Reliable Sullair Air End Patented rotor design Bearing fluid reservoirs Long life bearings Sound enclosure for quiet operation Reduces sound levels to as low as 66 dBA Easily removable for service Intelligent Electronic Controls Latest technology mircoprocessor controller to ensure uniform operation and uninterrupted production Deluxe monitoring All essential parameters conveniently displayed on controller Transducer control pressure to minimize off-load running and reduce over-compression Energy efficient features Premium efficient IEC motors standard Voltages: 208-230/460V/3PH/60Hz Single phase models available in 5, 7.5 and 10 hp 10,000-hour Genuine Sullube® factory fill 5-year Emerald Warranty Coverage on major components included air end, air/fluid, main drive motor, fluid cooler and aftercooler Single phase models available in 5, 7.5 and 10 hp Performance air system Matching dryers Filters Receiver tanks
