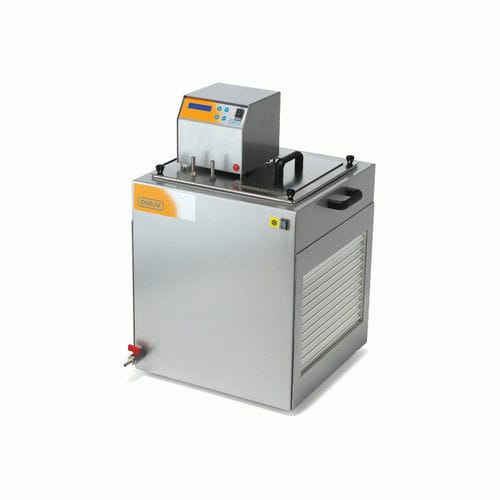

Circulating cryostat BC10E

circulating cryostat
circulating cryostat
Add to favorites
Compare this product


Characteristics

Type
circulating

Description

• Precision cryothermostat. • Inner tank made of stainless steel AISI 304, and metallic housing protected with Epoxi paint of great resistance to corrosion. • Temperature controlled by microprocessor, by means of an integrated Pt100 sensor, with “ARA V2” algorithm of temperature regulation with “fuzzy logic” control. • Digital display LCD backlighted with indication of the selected and real value of temperature. • Membrane push-button control. • CFC free compressor of 1/5 HP, noiseless and without vibration. • Circulation pump (6L/min) (max. pressure 200mbar). • Double safety thermostat: • cut out indicator lamp. The unit will cut out if there is insufficient liquid or if the temperature exceeds the maximum temperature. • safety automatic disconnection with acoustic alarm that prevents overheating from the programmed temperature (+2,5ºC). Connects again when the Tª is below the limit. • Indication on the display of high temperature on the tank, that provides protection against burn. From 45ºC. • Automatic restart after unexpected shut down keeping the same parameters as before the incident. An incident sign appears on the display. • Memory of the last settings. • External faucets for external thermostatization. • Water drainage faucet and handles for a easy transport. • Lid included of 254x130mm. • Main switch ON/OFF protected against splashes.
