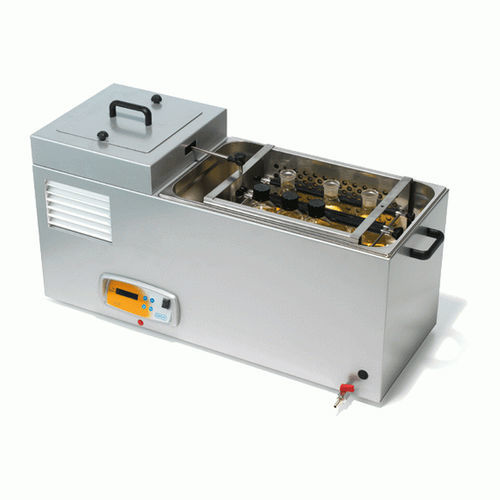

Tube cooling bath BSC127E

• Refrigerated bath with horizontal shaking. • Mobile inner tank made of stainless steel AISI 304, and metallic housing protected with Epoxi paint of great resistance to corrosion. • Temperature controlled by microprocessor, by means of an integrated Pt100 sensor, with “ARA V2” fuzzy logic algorithm for high precision temperature control, without surpassing reference temperature. • Digital display LCD backlighted with indication of the selected and real value of temperature and speed. • Membrane push-button control. • CFC free compressor of 1/5 HP, noiseless and without vibration. • Safety thermostat cut out indicator lamp. The unit will cut out if there is insufficient liquid or if the temperature exceeds the maximum temperature. • Indicator of high temperature on the tank provides protection against burns. From 45ºC. • Memory of the last settings. • Automatic restart after unexpected shut down keeping the same parameters as before the incident. An incident sign appears on the display. • Mains switch ON/OFF protected against splashes. • Water drainage faucet and handles for a easy transport. Max. Vol. (L) - 27 Heating power (W) - 1600 Refrigerating power (W) - 300 Tª range (ºC) - 10 – 100 Resolution (ºC) - 0,1 Shaking Power (W) - 50 Type of movement - horizontal Amplitude (mm) - 40 Speed range (rpm) - 10-100 Resolution (rpm) - 5 General Data Tank Material - Stainless Steel AISI 304 Inner Dimensions (cm) - 35x26x17 External Dimensions (cm) - 85x40x40 Weight (kg) - 30,0 Protection IP - IP52 Packaging cm - Tribox 97x45x56
