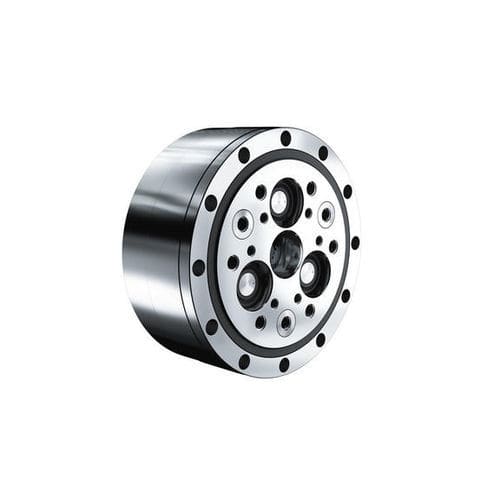

Spur gearbox T series

cylindrical200 - 500 Nm100 - 200 Nm

Double stage high precision gearbox Overview Spur gear pre-stage and three eccentrics provide highest transmission accuracy, minimum speed ripples and minimum vibration. Owing to optimized profile of the disc lobes, this exceptionally low-vibration gearbox reaches a very high transmission precision and provides a high degree of efficiency even in the low speed range Less than 0.5 arcmin Lost Motion Ideal for traverse movement applications High input and output speeds possible With integrated tapered roller bearings on output Motor connection with keyway or clamping system on request Motor adapter on request Variants: F2C-T cylindrical housing F2CF-T flange housing Advantages of Fine Cyclo T-Series Smooth movement for traverse applications Very small Moments of Inertia High Efficiency
