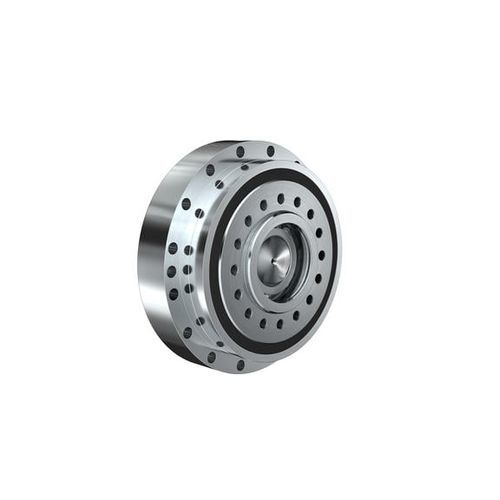

Cycloidal gearbox DA series

200 - 500 Nm500 - 1000 Nm1 - 2 kNm

Gears with high precision and the highest torque density in a single stage Overview Angular contact ball bearings integrated directly into the gearbox housing. The improved design provides very accurate motion quality with increased torque density and bearing capacity. Highest torque density of our single stage gearboxes Ideal for robotic and machine tool applications Fully sealed modular design available with motor adapter and clamping ring Advantages of Fine Cyclo DA-Series Ultra compact design Approx. 8% smaller in diameter and >5% shorter in length and 25% high torque Great price advantage Use of the single-stage DA gearboxes results in significant cost advantages compared to available two-stage gearboxes of the identical torque class Noise levels optimised and significantly reduced Important factor when people are working near the drive applications, as for example in the medical field. Easy installation in application Connection geometry does not require a complex installation, nor does it require an adjustment of the drive shaft Fully flexible design Connection of several motor shaft diameters is possible, allowing the use of motors from many different manufacturers Fully sealed version Lifetime lubricated ex works
