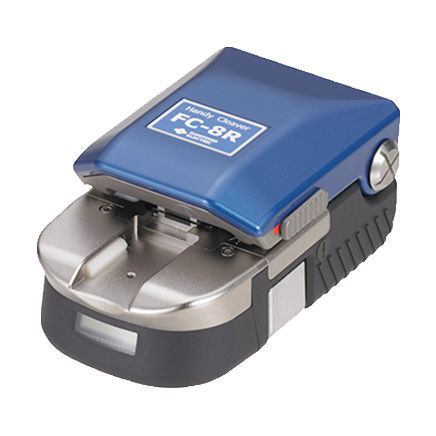

Cleave tool FC-8R series

Handheld fibre cleaver, with auto-rotating blade for single fibres and up to 12 fibre ribbons Our meticulously crafted ergonomic design fits perfectly to your hand. Leading the industry with top-of-the-line innovations. Our meticulously crafted ergonomic design fits perfectly to your hand. Leading the industry with top-of-the-line innovations. World-class quality, designed and manufactured in Japan. New Technology Easy, Handy, Long life Automatic blade rotation Patented mechanism, repeatable quality cleaves without blade adjustment Cleave counter Automatic counter cleaving time (FC-8R-FC only) High precision, durable blade Our expert metal working delivers consistent quality for over 60,000 fibres. User friendly functions Improve your field efficiency by - Selectable lid opening angle - Large capacity off-cut collector - Both for splicing and field connector use - Compatible with both single and ribbon fibres Basic Cleave Performance • 125um, silica glass fibre; Single to 12 fibre ribbons • Cleave length; 6-12mm (250um fibre), 10-20mm (900um fibre), 10mm (Ribbon fibre) • Typical Cleave angle; 0.5 degrees • Blade life; 60,000 fibres Functions • Automatic blade rotation; Available (switchable to fixed) • Cleave counter; FC-8R-FC; Available, FC-8R-F; N/A • Lid open angle; Switchable (Wide/Narrow) Other Specifications • Dimensions and weight; 58 x 98 x 47 mm, 260g • Operating condition; -10~50 degree C, 0~95% RH (non-condensing) • Storage condition; -10~50 degree C, 0~95% RH (non-condensing) Optional parts • AP-FC7; Standard fibre adapter • AP-FC8R; fibre adapter with lid • Off-cut collector; TR-FC8R • Replacement blade; FCP-20BL(7R) • etc. ...
