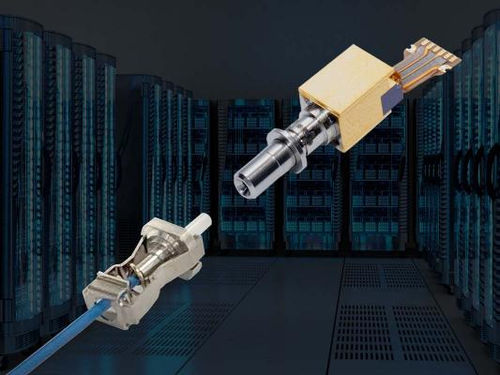

Metallic connector NanoPlug™ series

datashieldedEMI

NanoPlug™ is an ultra compact, metallic optical connector that is 1/10 smaller than a LC connector and does not require a splice tray while also exhibiting thermal resistance. The NanoPlug™ is PMF applicable and other customizations are also possible. This solution has a wide range of applications that go beyond people’s imaginations. Abundant experience in metal machining & fiber optic technology enables; Dramatic space saving - Metal housing enables the ultra miniaturization with keeping benefits as connector. - Mated in 9mm length / 4mm height. Much smaller than LC connector by 90% and fusion splice by 40%. - Adaptor less housing with keeping the function of mate/ demate. - No need room for splice tray Thermal resistance / Reflowable - Metal housing enables high heat resistance. - Withstands exposure at 300°C, 60 seconds. (optional) Achieving both high precision and low cost - Any complicated shape can be carved out only by lathe manufacturing A wide range of applications that go beyond people’s imaginations Telecom & Datacom Modules - Inner fiber optic wiring of Optical Transceiver Modules - EMI shielded optical connection at receptacle 5G / ADAS infrastructures - RF over fiber modules - On board connection of base station equipment Medical Equipment - Inner fiber optic wiring of endoscope or other sensing devices. - Light guide for IR oxygen monitoring. Optical Fiber Sensing Equipment - Inner fiber optic wiring of OTDRs, Gyroscopes, and Interferometers.
