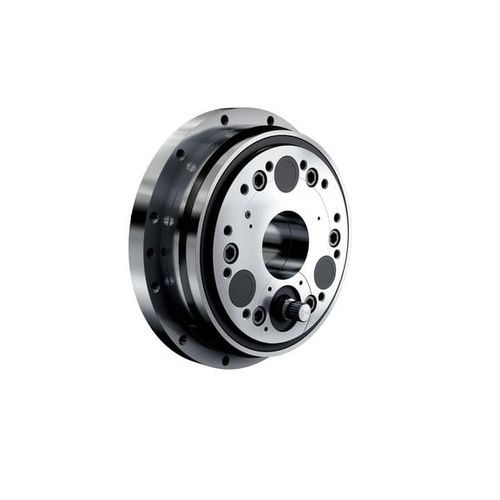

Cylindrical gearbox W seriescoaxialhollow-shaft2 - 5 kNm
Add to favorites
Compare this product
Characteristics
- Type
- cylindrical
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
- Performance
- high-precision, zero-backlash
- Applications
- for electric motors, industrial, shaft
- Other characteristics
- large
- Rotational speed
25 rpm, 30 rpm
(157.08 rad.min-1, 188.5 rad.min-1)- Backlash
0.02 °
Description
High precision gearbox with extremely large hollow shaft & built-in pre-stage
Overview
High load precision gearbox with huge hollow bore and integrated pre-stage.
Less than 1 arcmin Lost Motion
Ideal for robot base axes
Input and output on same side
Hollow shaft rotates with output speed
Different ratios possible on request (different pre-stage)
Motor coupling and adapter on request
Advantages of Fine Cyclo W-Series
Very smooth traverse movements
High Torsional Stiffness
Small Moments Of Inertia
High Efficiency
Easy Assembly And Motor Mounting
Lifetime Lubricated For Any Position
