Easily operated battery powered fan with particle- or combination filters.
Description

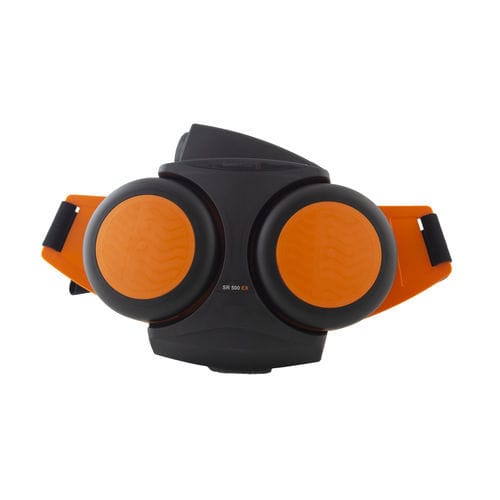

The SR 500 EX fan is explosion-proof and specially adapted for use in an explosive atmosphere. The SR 500 EX is included together with filters and head-tops in Sundström fan-assisted respiratory protective devices. The SR 500 EX can be used as an alternative to filter protections in all situations in which the latter are recommended. This applies particularly to situations in which the work is intensive, hot or of long-duration. The fan is equipped with filters and the filtered air is supplied through a breathing hose to the head-top. The latter is then pressurized, which prevents the surrounding pollutants from being admitted.
Technical specifications
Number : H06-2012
Color : Black, Orange
Shelf life (years) : 5
Country of manufacture : Sweden
Operating temp. : -10 – +40 °C, < 90 % RH
Storage temp. : -20 – +40 °C, < 90 % RH
Model : SR 500 EX
Cell type : NiMh 13,5V 2,1 Ah
Approval : EN 12941:1998 + A2:2008, EN 12942:1998 + A2:2008, EN 60079-0:2012, EN 60079-11:2012, EN 13463-1:2009
Directive 1 : (EU) 2016/425 PPE
Directive 2 : ATEX 2014/34/EU
Classification 2 : II G Ex ib IIA T3 Gb, II G Ex ib IIB T3 Gb, II 2 D Ex ib IIIC T195° Db
