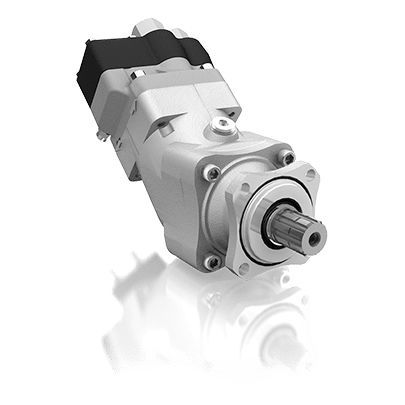

Hydraulic piston pump SCPD 56/26 DIN BY-PASS
compactoilflow

Hydraulic piston pump - SCPD 56/26 DIN BY-PASS - Sunfab Hydraulics - compact / oil / flow
Hydraulic piston pump - SCPD 56/26 DIN BY-PASS - Sunfab Hydraulics - compact / oil / flow
Add to favorites
Compare this product


Characteristics

Type
piston
Other characteristics
compact, oil, flow, integrated
Pressure

200 bar, 300 bar, 400 bar
(2,901 psi, 4,351 psi, 5,802 psi)

Flow rate

50 l/min, 82 l/min, 98 l/min, 123 l/min, 148 l/min
(13.21 us gal/min, 21.66 us gal/min, 25.89 us gal/min, 32.49 us gal/min, 39.1 us gal/min)

Speed

Max.: 2,700 rpm
(16,965 rad.min-1)

Min.: 600 rpm
(3,770 rad.min-1)

Weight

18 kg, 22.5 kg
(39.68 lb, 49.6 lb)

Power

Max.: 98.4 kW
(133.79 hp)

Min.: 16.4 kW
(22.3 hp)

Description

With two separate flows and a directly mounted By-Pass valve, the Sunfab’s SCPD 56/26 By-Pass DIN is the most flexible compact fixed flow pump on the market. SCPD 56/26 DIN By-Pass is ideal for combination vehicles which require different flows and where there is a need to operate equipment while moving. The pump is primarily intended for engine-mounted power take-offs. The constant engagement is made possible by the By-Pass valve, which immediately relieves the load on the pump and power take-off when oil is not required. The pressure drop of the By-Pass valve is very low, so its function is energy efficient. PRODUCT BENEFITS • The By-Pass valve can relieve the load from full operating pressure of 400 bar, which allows emergency stop function • The valve´s 24 V solenoids have integrated electrical cables which meet protection class ADR
