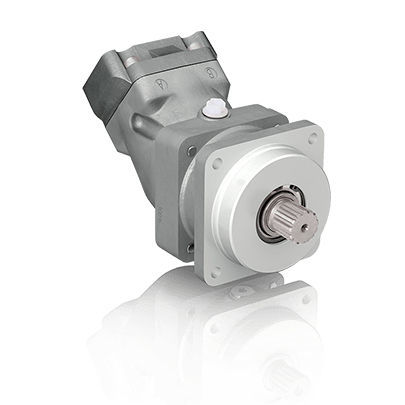

Axial piston hydraulic motor SCM 010 -130 ISO seriescompactbent-axis
Add to favorites
Compare this product
Characteristics
- Technology
- axial piston
- Other characteristics
- compact, bent-axis
- Pressure
300 bar, 350 bar, 400 bar
(4,351 psi, 5,076 psi, 5,802 psi)- Rotational speed
Min.: 300 rpm
(1,884.96 rad.min-1)Max.: 8,800 rpm
(55,292.03 rad.min-1)- Torque
Min.: 0.15 Nm
(0.11 ft.lb)Max.: 2.06 Nm
(1.52 ft.lb)- Displacement
Min.: 9.6 cm³
(0.32 US fl oz)Max.: 130 cm³
(4.4 US fl oz)
Description
SCM 010-130 ISO is a range of robust axial piston motors especially suitable for mobile hydraulics.
SCM 010-130 ISO is of the bent-axis type with spherical pistons. The design results in a compact motor with few moving parts, high starting torque and high reliability. It covers the entire displacement range 10-130 cmᶟ ⁄rev. at a maximum pressure of 400 bar. The motors well dimensioned, double tapered roller bearings permit high shaft loads and lead to excellent speed characteristics. The high level of reliability is based on the choice of materials, hardening methods, surface structures and the quality assured manufacturing process.
PRODUCT BENEFITS
• High maximum speed
• Smooth operation over the entire speed range
• Available in many different configurations of shafts and connections
• High efficiency
• Speed sensor available as option
• Suitable for applications with high angular accelerations due to its high rotary stiffness
