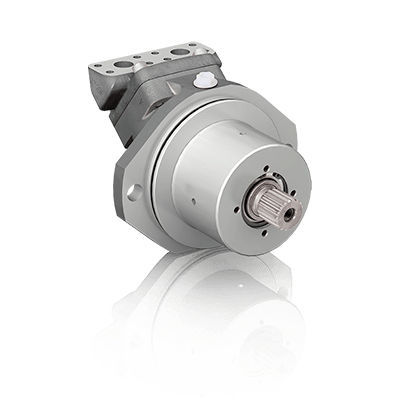

Axial piston hydraulic motor SCM 025-108 M2compactbent-axis
Add to favorites
Compare this product
Characteristics
- Technology
- axial piston
- Other characteristics
- compact, bent-axis
- Pressure
300 bar, 350 bar, 400 bar
(4,351 psi, 5,076 psi, 5,802 psi)- Rotational speed
Max.: 7,000 rpm
(43,982.3 rad.min-1)Min.: 300 rpm
(1,884.96 rad.min-1)- Torque
Max.: 1.71 Nm
(1.26 ft.lb)Min.: 0.4 Nm
(0.3 ft.lb)- Displacement
Max.: 108 cm³
(3.65 US fl oz)Min.: 25.4 cm³
(0.86 US fl oz)
Description
SCM 025-108 M2 is a range of robust axial piston motors with cartridge flange especially suitable for winch-, slewing-, wheel- and track drives.
SCM 025-108 M2 is of the bent-axis type with spherical pistons. The design results in a compact motor with few moving parts, high starting torque and high reliability. The SCM 025-108 M2 covers the entire displacement range 25-108 cmᶟ ⁄rev. at a maximum pressure of 400 bar. The motors well dimensioned, double tapered roller bearings permit high shaft loads and lead to excellent speed characteristics. The high level of reliability is based on the choice of materials, hardening methods, surface structures and the quality assured manufacturing process.
PRODUCT BENEFITS
• High maximum speed
• Smooth operation over the entire speed range
• High efficiency
• Suitable for applications with high angular accelerations due to its high rotary stiffness
