Rotary dryer 260M2

continuouscylinderlow temperature

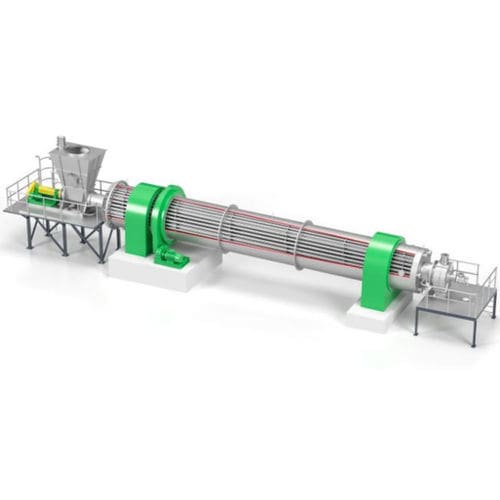

Steam tube dryers is a type of indirect dryer, which means that the material being dried does not come in direct contact with the heating medium. Known for their simple, reliable, and low-maintenance operation, steam tube dryers are an established choice for a wide variety of drying applications. Steam Tube Dryer is a rotating cylinder containing rows of steam tubes, arranged in concentric circles, and extending the full length of the cylinder. The tubes are designed to transfer heat from the steam to the material being dried and may be supplied with or without fins, according to the design specifications. Together with radial flights, the tubes serve to agitate the material and to provide uniform mixing and drying. The dried product is discharged through discharge chutes. Steam is introduced into the tubes through a manifold located at the discharge end of the cylinder. The manifold is connected to a rotary steam joint which admits the steam and continuously drains the condensate. The thermal efficiency of the dryer is very high, and heat loss through the cylinder wall is minimal because the steam tubes are completely enclosed by the dryer. Steam tube dryers are designed and manufactured in accordance with the ASME Code, Section VIII, for unfired pressure vessels. • High thermal efficiency with minimal heat loss • Indirect heat and low temperature drying suited for a wide variety of materials • Uniform mixing and drying ensures extremely high product quality • Simple operation, startup, and shutdown • Low operating and maintenance costs • Available in wide range of sizes to meet application requirements
