Diameter measuring system AG series

gaugehigh-precision

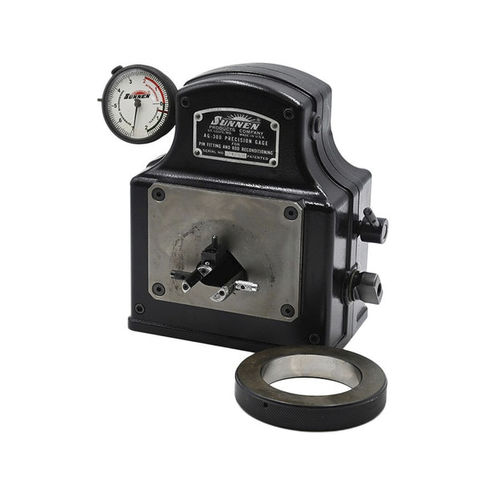

No rod should be reconditioned or pins fit without precise gaging. The only way to know the bore size is to measure the bore, and there is no better way to measure rod bores than with Sunnen's AG-300 and AG-400 Precision Gages. The AG-300 and AG-400 are the only gages specifically designed for both clearance and press type pin fits and the journal end of connecting rods. Both gages come complete with setting fixture, calibrator rings, medium and large extension point sets, accessory case, mounting bracket and instructions. Gage Specifications Range: 9.5 mm – 85.7 mm (.375 – 3.375 in) Range:18 mm – 68 mm (.720 – 2.687 in) Fingers are 15.24 mm (.600 in) longer than AG-300 for use with larger diameter pistons with shorter wrist pins As shipped-Range 18-68 mm (.720"-2.687"). Includes setting fixture, calibrator rings, medium and large extension point sets, accessory case, mounting bracket and instructions. Features & Benefits Checks rod journal bore for distortion Assures correct size within 0.002mm (.0001 in) Easy to use…no "feel" required Measures size instantly Wear-compensated gage points assure permanent accuracy Assures exact fits required by high tech engines
