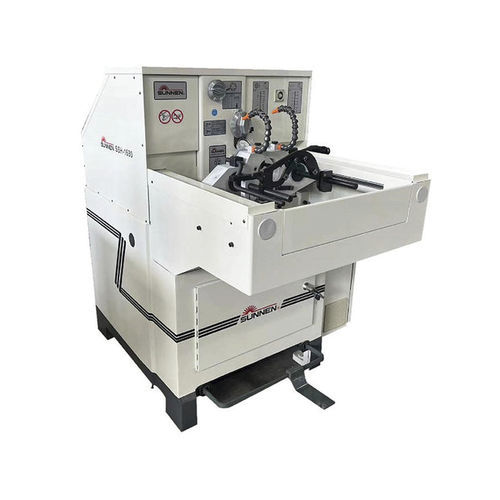

Finishing honing machine SSH-1680

horizontalconventionalelectric

Job after job in all kinds of shops, Sunnen® Power Stroked Honing is producing work faster and with greater accuracy and consistency than I.D. grinders – especially where diameters are under 40 mm (1.57 in.). MACHINE SPECIFICATIONS Maximum bore length up to 250 mm (9.84 in) FEATURES + BENEFITS Zero Shutoff - Power stroking system can be set up to hone to size and automatically stop Power Stroking Standard - Both selectable manual and automatic power stroking is standard Solid Construction Throughout - Reinforced structural steel and cast iron provides a solid machining platform Moving components are isolated from the base to eliminate vibration Rigid stroker carriage and robust linkage-driven design permit more rapid stroking, which shortens cycle times Foot Pedal - For ease-of-use and safety, the foot pedal starts and stops the machine ADDITIONAL INFORMATION Sunnen Power Stroking assures constant stroke length and stroke rates. Combined with a zero shutoff means better control of bore size, finish and geometry than ever before – at high-production rates. With the fast stock removal rates of the Sunnen SSH-1680, you can eliminate preliminary reaming, boring or grinding on many jobs and it allows you to rough and finish in one operation. The SSH-1680 is extremely versatile. It handles workpieces of almost any size or configuration and cuts all kinds of materials fast and clean.
