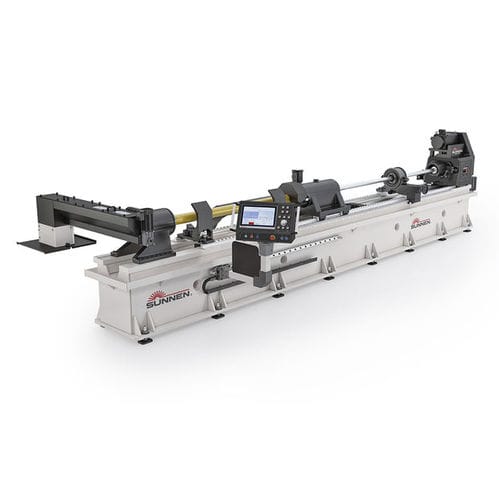

CNC skiving/roller burnishing machine SHDS series

Sunnen’s SHDS-series skiving and roller burnishing machines provide a cost effective bore sizing solution for hydraulic cylinders and other high-production applications. This heavy-duty system is up to 70 percent faster than traditional honing and is engineered to deliver precise tolerances and quality surface finishes. SHDS Series Machine Specifications Diameter Range (ID): 50 - 178 mm (2.0-7.0 in) (Mild Steel) Maximum Outside Diameter (OD): 300 mm (11.8 in) Spindle Speed 1650 RPM maximum Features and Benefits Available in three standard models 2-meter maximum part length (SHDS-2500) 4-meter maximum part length (SHDS-4500) 6-meter maximum part length (SHDS-6500) Beckhoff PLC Control with large 394 mm (15.5 in) HMI. With easy to use, intuitive controls. Heavy-duty 55 mm (2.16 in) linear rails for maximum durability. Heavy-duty servo ball screw drives for tool feed and part clamping. CE compliant guarding with a combination of light curtains and fencing. Heavy duty welded base 3765 liter (1000 gal) Modular Coolant system Best in industry 3-year warranty.
