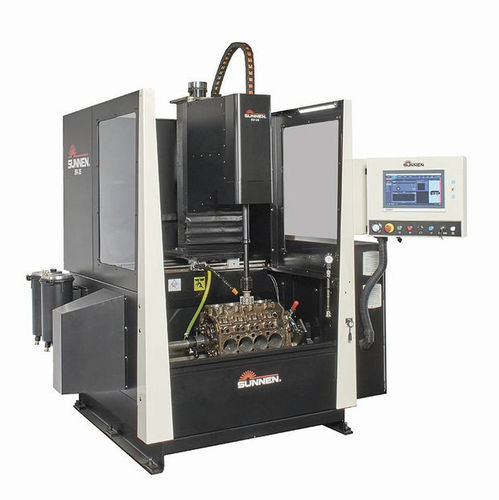

Vertical honing machine SV-35

finishingsurfacingspindle

The SV-35 Series is the next generation of the legendary Cylinder King® line of honing machines known worldwide. The SV-35 features the all new Sunnen2 control system designed in-house by engineers who are experts in honing applications. The machines offer a wide variety of features and flexibility in an affordable package ideal for contract machine shops, automotive performance and rebuilding shops, and mid-volume industrial production facilities. MACHINE SPECIFICATIONS Spindle Speed 50 to 600 RPM Spindle Power 3.4 kW (4.55 hp) Stroker 3.5 kW servo (4.7 hp) Variable speed: 5 to 100 SPM Stroke Length: up to 705 mm (27.75 in.) Servo X Axis models: 0.8 kW (1.07 hp) Carriage Travel 813 mm (32 in.) left/right travel available (X axis) Maximum Workpiece and Fixture Weight 600 kg (1325 lbs.) Workpiece Envelope 1219 mm W x 760 mm D (48 in. x 30 in.) Machine Weight Dry Weight: 1329 kg (2930 lbs.) Shipping Weight: 1823 kg. (4020 lbs.) Honing Fluid/Filter System Honing Oil Reservoir: 206-liter (55-gallon) capacity with two standard canister filters. Voltages Available Electrical System: 400 VAC 50 Hz 3 phase 460 VAC 60 Hz 3 Phase FEATURES + BENEFITS Constant crosshatch finish is maintained throughout the bore from top to bottom, with no rollover, via the synchronized servo spindle and stroker mechanisms. Step and repeat functionality provides automatic bore-to-bore operation with servo X-axis and new GH LF series tooling. Tool protection at both top and bottom of the bore. Rugged cast iron column. Intuitive, easy-to-use Sunnen2 controls with a large 396 mm (15.6 in.) color touch screen. Proven servo ball screw stroking mechanism.
