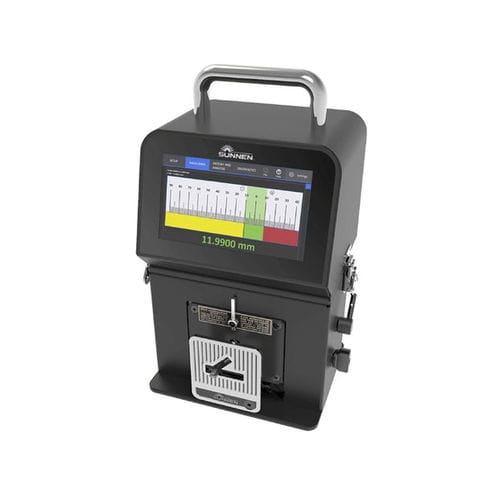

Boring measuring gauge PGE-6000

Sunnen’s new electronically amplified comparative PGE-6000 Bore Gaging System beats old-style mechanical gages in every respect. Its simplified design, coupled with a sophisticated electronic package, makes it the most versatile bore gaging system on the market. This system measures in both inches and millimeters. The new PGE-6000 features a menu-driven operator interface. Its potential is almost unlimited. You are free to “customize” its usage according to your own preference and choose what you want to display and how you want to display it. The new PGE-6000 electronic gaging system knows no rival for accuracy, reliability, versatility, simplicity and economy. SPECIFICATIONS Selectable Resolution 0.01 / 0.001 / 0.0001 mm or 0.0001 / 0.00001 / 0.000001 inch Standard Measuring Range 9.40 mm to 38.10 mm (.370 in. to 1.500 in.) Range Of Small Gage Fingers 9.40 mm to 18.80 mm (.370 in. to .740 in.) Range Of Large Gage Fingers 18.80 mm to 38.10 mm (.740 in. to 1.500 in.) Optional Range PG-250E Extension Fingers 38.10 mm to 74.30 mm (1.500 in. to 3.000 in.) Power Requirements 120V/60 Hz single phase or 240V/50 Hz single phase Operating Temperature 10 ~ 30 degrees C (50 ~ 86 degrees F) Net Weight 12.25 kg (27 lbs.) FEATURES + BENEFITS Simple and quick calibration of gage. Easy to follow setup menu. Selectable between two scale settings, “Narrow” mode or “Wide” mode. Display in either millimeters or inches. Single or Multiple measurements. Batch or Serial number modes. Programmable operator-defined default settings. Display both graphical and numerical values. Maximum resolution of 0.0001 mm or 0.000001 inch.
