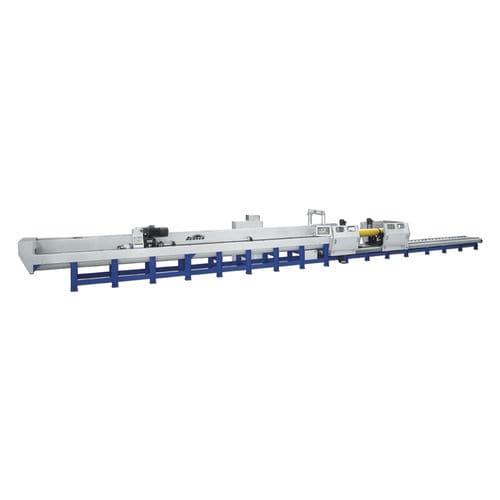

Cutting honing machine HTD

spindleCNCelectric

Sunnen's HTD Heavy-Duty Tube Hone is built for demanding applications such as cylinder liners, hydraulic cylinders, extrusion cylinders, aircraft components and compressor components. The powerful system can remove more than 2,500 cm³/h. With a state-of-the-art touch screen control and power, tubes can be honed without bore drilling. MACHINE SPECIFICATIONS Spindle Motor: 22 kW (29.5 Hp) Servo Stroke Motor: 14.0 kW (18.75 Hp) FEATURES + BENEFITS Automatic bore geometry correction 100 percent process control with tool overload protection 3-axis function control for stroke positions, stone feed, spindle speed and cutting pressure Variable stroke speed, adjustable in 0.1m/min increments Tool life for tool insertion and removal Front stationary steady rest shaft support Lifetime application service with every machine purchase ADDITIONAL INFORMATION The HTD can handle bore lengths from 4,000 mm (13.1 ft in) to 14,000 mm (45.9 ft). The system is easy to set up and stores more than 900 setups. The system recommends the required tool, sets the spindle speed and all cycle parameters. A new set-up can be made in two minutes.
