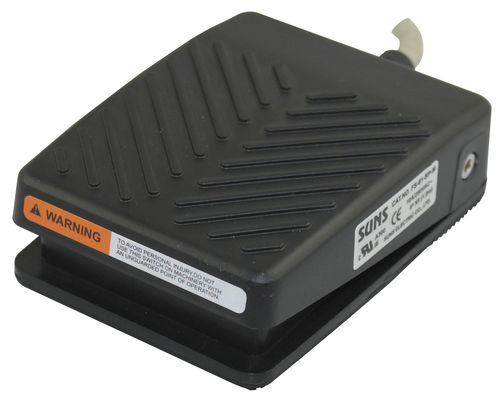

Control foot switch FS81 IPX8securityelectricsingle pedal
Add to favorites
Compare this product
Characteristics
- Function
- control, security
- Technology
- electric
- Type
- single pedal, momentary
- Other characteristics
- compact, waterproof, IP68
- Applications
- for medical applications, for dental applications
Description
Features:
* Robust Glass Fiber Reinforced Plastics or aluminum die cast body
* Galvanically separated contacts(for FS81-SP only)
* Positive Opening of NC contacts(for FS81-SP only)
* UL/cUL approved (E216958)
* IEC60601 certification issued by TUV for medical applications
Specifications:
Operating Speed: 60ops/min
Insulation Resistance:>100mΩ@500VDC
Contact Resistance: <25mΩ
Rated Current/Voltage: Ith:10A Ui:300VAC
UL Rating:A300/AC15 CCC Rating:10A/250VAC IEC60601(TUV):5A/25VAC Dielectric Strength: 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
Service Life: Mechanically 1,000,000 (operations)
Electrically 500,000 (operations)
Operating Temperature: -30~+80(-22~+176)
Degree of Protection: IPX8(NEMA 4,4X,6X6P)
