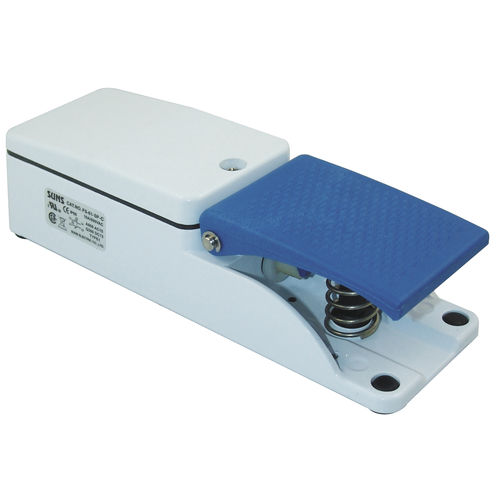

Control foot switch FS-61/62-HL1

Hall effectsingle pedalwaterproof

Features: •Robust aluminum alloy die cast body •Linear Hall Effect Output •Output can be directly connected to most electronics circuitry such as microprocessors integrated logic, discrete transistors and SCRs with compatible voltage specifications Specifications: Supply Voltage (Vs) 4.5 VDC to 10 VDC -------------------------------------------------------------------------------- Supply Current Typical: 7mA Max.: 8.7mA -------------------------------------------------------------------------------- Output Type Ratiometric -------------------------------------------------------------------------------- Output Voltage Typical : 0.2 to (Vs - 0.2) Min.: 0.4 to (Vs - 0.4) Typical : 0.2 to (Vs - 0.2) Min.: 0.4 to (Vs - 0.4) Typical : 1.5mA Min.: 1.0mA -------------------------------------------------------------------------------- Service Life 1 x107 (operations) -------------------------------------------------------------------------------- Operating Temperature -40~+100oC (-40~212oF) -------------------------------------------------------------------------------- Degree of Protection IP68(NEMA 6,6P)
