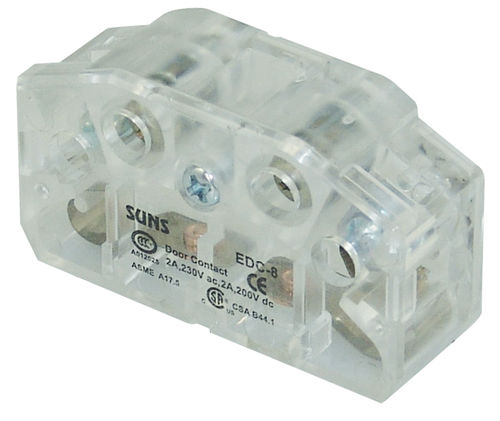

Electric electric door controller EDC-8/9

with key lock switch

Features: 1）For use in controlling the closure position of lift doors or as switch for locking mechanism of automatic doors Safety switch with positive contact Specifications: Actuator: Silver-plated brass with PA6/66 (UL94-V0) enclosure -------------------------------------------------------------------------------- Contact Material: Cu-rivets with silver coating -------------------------------------------------------------------------------- Mounting: 2xM4 thread rolling captive screws -------------------------------------------------------------------------------- Contact Type: 1NC -------------------------------------------------------------------------------- Termination:M3.5 screw switch self-lifting clamp (conductor cross-section 0.5 to 1.5 mm2) -------------------------------------------------------------------------------- Switching Frequency: 30 ops/min -------------------------------------------------------------------------------- Rated Thermal Current (Ith):4A -------------------------------------------------------------------------------- Rated Operation Current/Voltage (Ie/Ue):2A/230VAC; 2A/200VDC (according to EN81-1, -2) -------------------------------------------------------------------------------- Short-time current protective device: Fuse 6A gL -------------------------------------------------------------------------------- Ambient Temperaturel: -30~+80oC (-22~176oF) -------------------------------------------------------------------------------- Mechanical Life:Mechanically 10 millions operations --------------------------------------------------------------------------------
