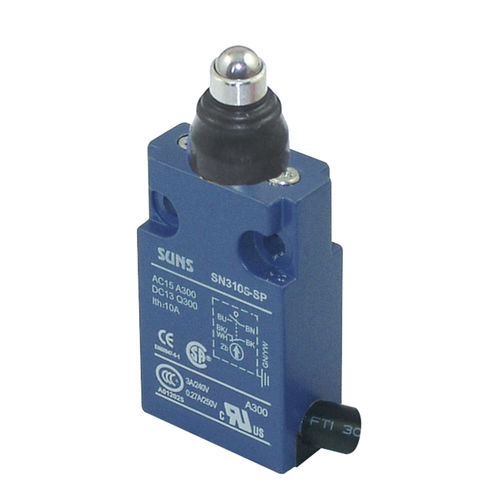

Rotating cam limit switch SN31 Series SN3105for elevatorminiatureIP67
Add to favorites
Compare this product
Characteristics
- Technology
- rotating cam
- Applications
- for elevator
- Size
- miniature
- Protection level
- IP67
- Other characteristics
- safety, waterproof
Description
Features:
*Easy to install
*Golbal general standard
*M12 aviation connector available
Specifications:
Operating Speed: 0.05mm-2m/sec
Operating Frequency: Mechanical:120ops/min Electrical: 30ops/min
Insulation Resistance: >100MΩ @ 500V DC
Contact Resistance: <25mΩ
Rated Current/Voltage: 10A/300V AC (EN60947-5-1)
Electrical Rating: UL/cUL Listed(E216958) for AC15 A300/ DC13 Q300
Dielectric Strength: 1000VAC for 1 min between non-continuous terminals
2500VAC for 1 min between each terminal and ground
Service Life: Mechanically 10,000,000, Electrically 500,000
Operating Temperature: -25~85℃without formation of ice
Humidity: <95%RH
Cable: 5 core,0.75mm2
