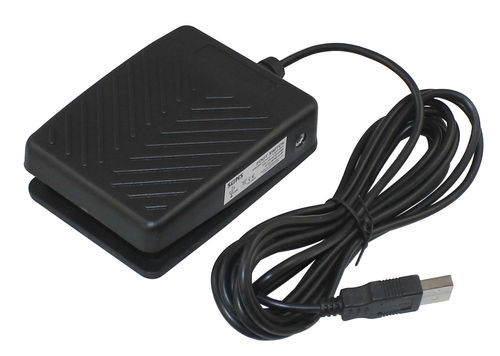

Control foot switch FS-8 USB

electricsingle pedal3 pedals

Features: *Available in Single,Twin&3-Pedals (If more than 3pedal needs,two foot swithes can be used) *Pre-program key functions on the foot pedal by software *Only requires a USB interface *Compatible with Windows OS2000/XP/Vista/7 *Avaiable with medical grade waterproof pedals *Comes with CD-Rom for setting pedal(s) functions Specifications: Operating Speed: 60ops/min -------------------------------------------------------------------------------- Insulation Resistance: >100mΩ@500VDC -------------------------------------------------------------------------------- Contact Resistance: <25mΩ -------------------------------------------------------------------------------- Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts -------------------------------------------------------------------------------- Service Life: Mechanically 1.0×106 (operations) Operating Temperature: -30~+80(-22~+176) -------------------------------------------------------------------------------- Degree of Protection: IP20/NEMA 1 or IPX8/NEMA 4,4X,6,6P
