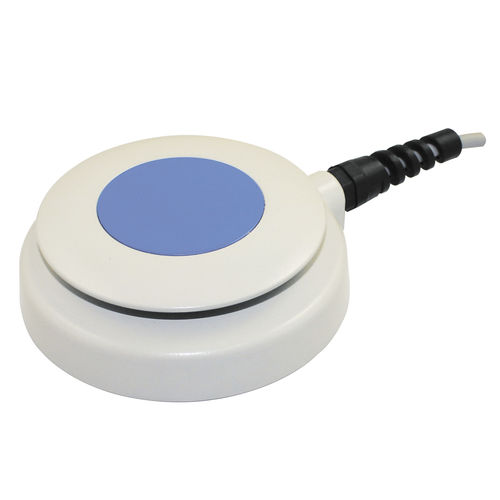

Control foot switch MED-110/170

electricsingle pedalhigh-stability

Features: •360 actuation •High mechanical stability •Aluminum alloy die cast body •Custom color available Installation dimensions: Specifications: Operating Frequency 60 ops/min -------------------------------------------------------------------------------- Insulation Resistance >100mΩ@500V DC -------------------------------------------------------------------------------- Contact Resistance <25mΩ(initial) -------------------------------------------------------------------------------- Rated Current/Voltage 5A or 10A 0-250V -------------------------------------------------------------------------------- Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts -------------------------------------------------------------------------------- Service Life Mechanically 2 x106 (operations) Electrically 5 x105 (operations) -------------------------------------------------------------------------------- Operating Temperature -20~+80oC (-4~176oF) -------------------------------------------------------------------------------- Degree of Protection IPX8 (NEMA 4, 4x, 6, 6P)
