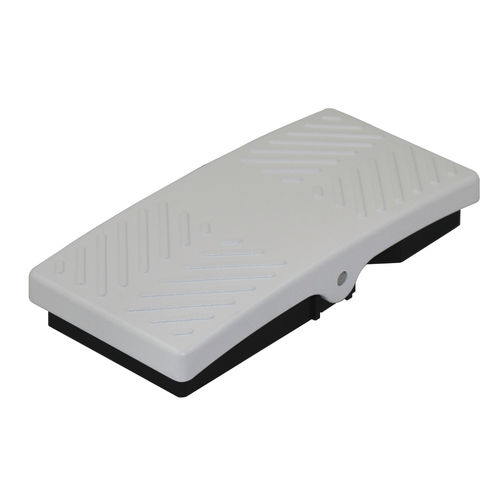

Control foot switch FSR-2

electricsingle pedal2 pedals

Features: * Rocker arm foot switch * Zinc metal die cast body * High mechanical stability Specifications: Operating Frequency: 60 ops/min -------------------------------------------------------------------------------- Insulation Resistance: >100MΩ @500V DC -------------------------------------------------------------------------------- Contact Resistance: <25mΩ(initial) -------------------------------------------------------------------------------- Rated Current/Voltage: 10A/15A 1/2HP 250VAC -------------------------------------------------------------------------------- Inrush Current: Complies with IEC947-5-1: AC15/DC13 -------------------------------------------------------------------------------- Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts -------------------------------------------------------------------------------- Service Life: Mechanically 1 x106 (operations) Electrically 5 x105 (operations) -------------------------------------------------------------------------------- Operating Temperature: -30~+80℃(-22~176℉) -------------------------------------------------------------------------------- Degree of Protection: IPX8(NEMA 4, 4X, 6, 6P)
