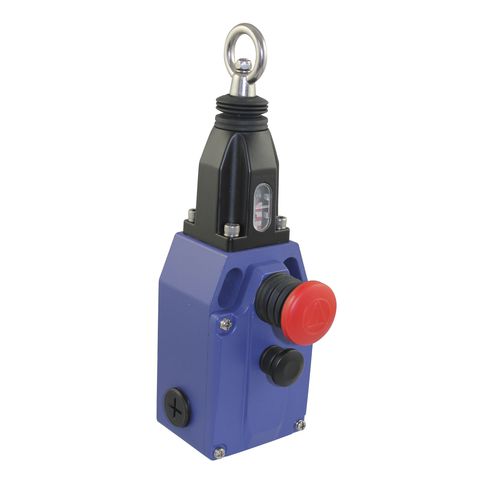

Safety switch CP7

cable-pullsingle-poleIP67

Features: *max span 125m *General-purpose fiting size and triggering mode *Compatible to EN418 required with emergency stop *button on the surface cover *the switch works in two direction:tripped when the wire *is pulled or breaking. *The switch can be with indicator light to show the state. *Positive Opening of NC contacts *Conform to EN60947-5-5, *ISO13850, ISOTR 12100, IEC 60947-5-1, EN 418 Specifications: Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min -------------------------------------------------------------------------------- Insulation Resistance:　>100MΩ @ 500V DC -------------------------------------------------------------------------------- Contact Resistance: <25mW (initial value) -------------------------------------------------------------------------------- Rated Current/Voltage:　Ith:10A 600V AC (EN60947-5-1) -------------------------------------------------------------------------------- Electrical Rating:　 AC15 A600/ DC13 Q300 -------------------------------------------------------------------------------- Dielectric Strength:　1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts -------------------------------------------------------------------------------- Service Life:　　　 Mechanically 10,000,000, Electrically 500,000 -------------------------------------------------------------------------------- Operating Temperature:　-25~80℃(-13~176°F) without formation of ice -------------------------------------------------------------------------------- Humidity: < 95%RH -------------------------------------------------------------------------------- Degree of protection:　 IP67
