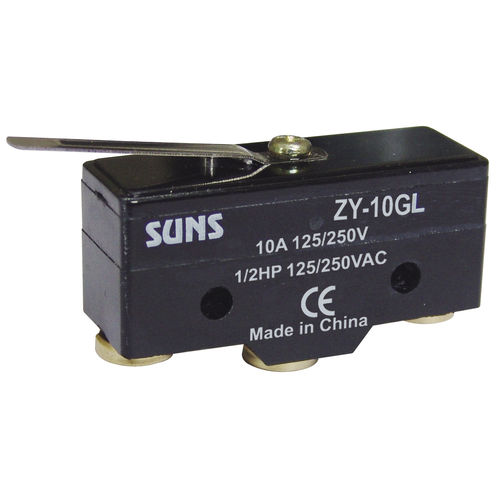

Lever micro-switch 2-poleindustrialwith housing
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- 2-pole
- Other characteristics
- industrial, with housing, momentary, thermoplastic
- Primary current
Max.: 10 A
Min.: 0.5 A
- Voltage
Max.: 480 V
Min.: 125 V
Description
Features:
Specifications Operating Speed
0.01mm-1m/sec Operating
Frequency
Specifications:
Operating Speed 0.01mm-1m/sec
--------------------------------------------------------------------------------
Operating Frequency Mechanical: 240ops/min Electrical: 20 ops/min
--------------------------------------------------------------------------------
Insulation Resistance >100mΩ@500V DC
--------------------------------------------------------------------------------
Contact Resistance <15mΩ
--------------------------------------------------------------------------------
Rated Current/Voltage 10A 1/2HP 125/250VAC, 2A 480VAC 0.5A 125VDC,0.25A 250VDC
--------------------------------------------------------------------------------
Dielectric Strength 1000VAC for 1 min between current carrying parts 1500VAC for 1 min between non- current carrying parts
--------------------------------------------------------------------------------
Service Life Mechanically 1 x106 (operations) Electrically 5 x105 (operations)
--------------------------------------------------------------------------------
Operating Temperature -25~+80oC (-13~176oF)
--------------------------------------------------------------------------------
Humidity 35％~85％RH
--------------------------------------------------------------------------------
Degree of Protection general type:IP00 drip-proof type(suffix:-55):IP62
