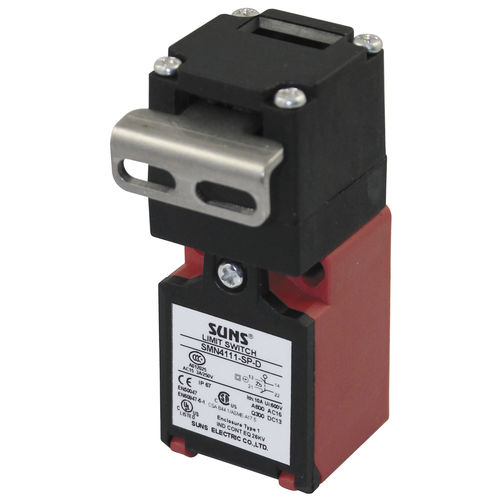

Security interlock device SND4191/SMN4191

single- or double-sided

Features: * Galvanically separated contacts * Screw terminals with self-lifting clamps for easy wiring * Positive Opening of NC contacts * 4 x 90° actuator positions * Horizontal or Vertical Operation Installation dimensions: Specifications: Operating Speed: 0.05mm-0.5m/sec -------------------------------------------------------------------------------- Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min -------------------------------------------------------------------------------- Insulation Resistance:　>100MΩ @ 500V DC -------------------------------------------------------------------------------- Rated Current/Voltage:　10A/600V AC (EN60947-5-1) -------------------------------------------------------------------------------- Electrical Rating:　　UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300 -------------------------------------------------------------------------------- Service Life:　　　 Mechanically 10,000,000, Electrically 500,000 -------------------------------------------------------------------------------- Operating Temperature:　-25~80℃(-13~176°F) without formation of ice -------------------------------------------------------------------------------- Degree of protection:　 IP65/IP67
