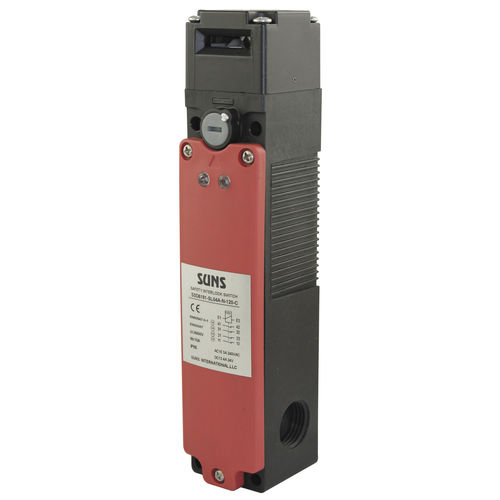

Safety and access control solenoid interlock SSD6191

for electric power plantswith electric releasewith electromechanical bolt

Features: • Robust zinc die cast head assembly with glass fiber reinforced plastic or zinc die cast body • Three solenoids voltages: 24Vac/dc, 120Vac and 240Vac • Power-to-lock or power-to-unlock types for key trap (2500N holding force) • Flexible switching arrangement • 24 V, 110 Vac, and 230 Vac coil voltages • Override mechanism in cover • Head may be rotated into 4 different positions • Three conduit openings (knock-out style) • Switch position provides status • Choice of different contact blocks • Indicators for switch and solenoid status (optional) • Positive Opening of NC contacts • Cable entry available: M20, and 1/2"NPT • Approval: CE, cULus (pending) Specifications: Rated thermal current (Ith) 5 A --------------------------------- Sealing:SSD6191 IP65; NEMA 1, 4, 12, 13/SS6191 NEMA 1,4,6,12,13 ---------------------------------- Rated impulse withstand (Uimp) :2500 V --------------------------------- Pollution degree: 3 (macro-environment, installation environment) -------------------------------- Rated insulation voltage :(Ui) 600 V -------------------------------- Operating temperature range: -25 °C to 50 °C [-13 °F to 122 °F] --------------------------------- Storage temperature range: -40 °C to 85 °C [-40 °F to 185 °F] --------------------------------- Short-circuit protective device (type/maximum rating): Class J fuse (10A/600 Vac) --------------------------------- Expected mechanical life : ---------------------------------- 1,000,000 operations Conditional short-circuit current :1000 A
