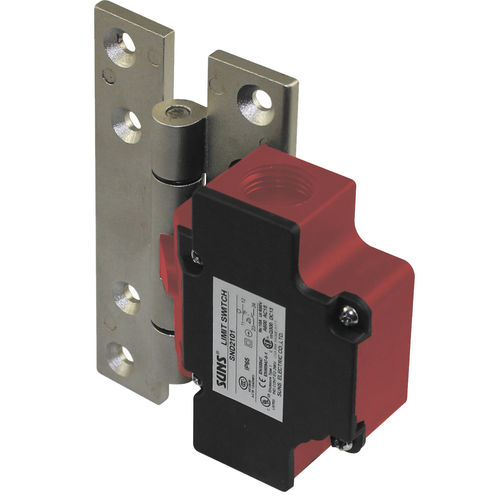

Safety switch SND2101/SND4182

Safety Switches for Hinges Lids Features: * Gaivanically separated contacts * Screw terminals with self-lifting clamps for easy wiring * Postitive Operaing or NC contacts *4x90 actuator positions Installation dimensions: Specifications: Operating Speed: 0.05mm-0.5m/sec -------------------------------------------------------------------------------- Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min -------------------------------------------------------------------------------- Insulation Resistance:　>100MΩ @ 500V DC -------------------------------------------------------------------------------- Contact Resistance:　　<25mΩ -------------------------------------------------------------------------------- Rated Current/Voltage:　10A/600V AC (EN60947-5-1) -------------------------------------------------------------------------------- Electrical Rating:　　UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300 ------------------------------------------------- Dielectric Strength:　1000VAC for 1 min between non-continuous terminals 2500VAC for 1 min between each terminal and ground ----------------------------------------------- Service Life:　　　 Mechanically 10,000,000, Electrically 500,000 ----------------------------------------------- Operating Temperature:　-25~80℃(-13~176°F) without formation of ice ---------------------------------------------- Humidity:　　　　 <95%RH ---------------------------------------------- Weight：　　　 ~300g ----------------------------------------------- Degree of protection:　 IP67
