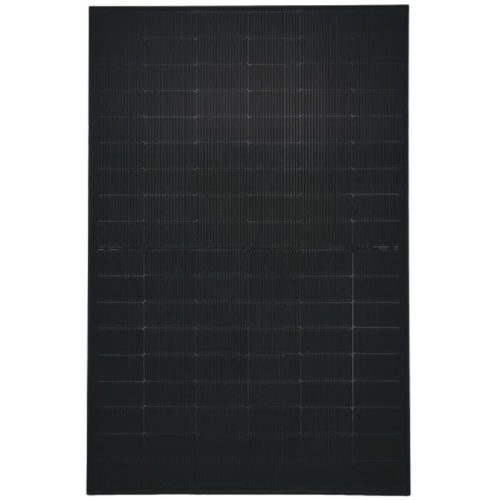

Monocrystalline silicon solar module EN_STP420-440S-C54-Nshtb+
PERCCETUV

Monocrystalline silicon solar module - EN_STP420-440S-C54-Nshtb+ - Suntech Power Corporation - PERC / CE / TUV

Add to favorites

Compare this product

Characteristics

Technology

monocrystalline silicon

Features

PERC

Certifications

CE, TUV, IEC, ISO

Other characteristics

black, IP68

Peak power (Wp)

Max.: 400 W

Min.: 321.6 W

Open-circuit voltage

Max.: 38.98 V

Min.: 36.6 V

Short circuit current

Max.: 14.41 A

Min.: 11.36 A

Max power voltage

Max.: 32.7 V

Min.: 29.9 V

Max power current

Max.: 13.46 A

Min.: 10.75 A

Module efficiency

21.5 %, 21.8 %, 22 %, 22.3 %, 22.5 %

Lenght

1,722 mm
(68 in)

Width

1,134 mm
(45 in)

Height

30 mm
(1 in)

Weight

21 kg
(46.3 lb)

Description

The Ultra V Pro is the best solution to have a compact product with high power/㎡ LCOE is 5% lower compared to the same type of PERC modules. Aesthetic appearance design Elegant design in all-black appearance, harmonious integration with the components of the building to provide an intenseaesthetic experience Lightweight double glass Lightweight double glass structure which effectively reduces therate of module breakage. The ideal module size and weight makehandling and installation easier Withstand harsh environments Reliable quality that makes module resistant even to high temperatures, salt water and ammonia Extended wind and snow load tests Module certified to withstand extreme wind (3800 Pascal)and snow loads (6000 Pascal)*
