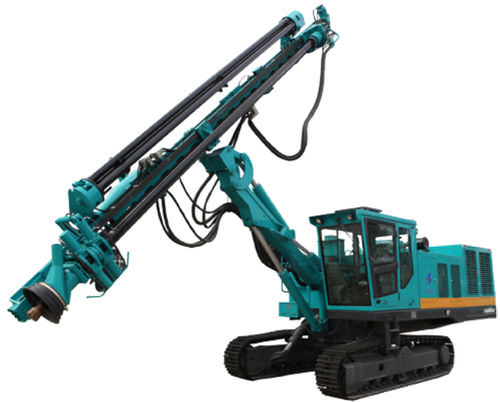

Multifunction drilling rig SWDE120crawlerdown-the-holehydraulic
Add to favorites
Compare this product
Characteristics
- Applications
- multifunction
- Mobility
- crawler
- Drilling unit
- down-the-hole
- Other characteristics
- hydraulic
- Drilling diameter
Max.: 138 mm
(5 in)Min.: 90 mm
(4 in)- Drilling depth
Max.: 24 m
(78'08" )Min.: 0 m
(0'00" )
Description
Main Parameters
Total weight 15.5t
Working state：L x W x H 7.76×3.12×8.44 (m)
Transportation state：L x W x H 10.3×3.12×3.5 (m)
OPERATION PARAMETER
Drill rod length 4m×6
Drill rod diameter 83mm
Hole diameter 90～138 (mm)
Hole depth, max 24m
Drill hammer DHD340
Dust collection device Dry type (standard) / Wet (optional)
AIR COMPRESSOR
Model 550RH
Working pressure 0.65～1.7 (MPa)
Free air delivery 15.5m3/min
Power 179kW /1800rpm
ENGINE
Model 4BT3.9
Power / Speed 75kW / 2200rpm
Fuel tank capacity 470L
