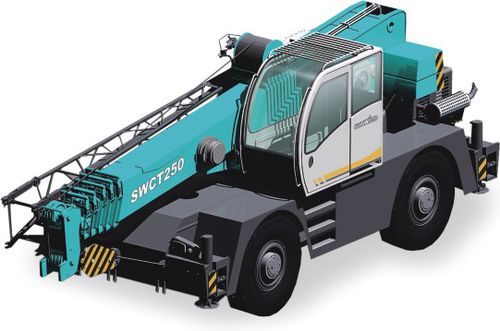

Mobile crane SWCT250

telescopicall-terrainlifting

Main Parameters Dimensions：L × W × H 8990×2495×3420 (mm) Curb weight of whole vehicle 24600kg Max. rated lifting capcacity 25000kg Max. rated lifting moment 750kN.m Main boom length 7410~30010 (mm) Jib length 6000~9000 (mm) Main boom elevation angle -7.5°~80° Jib installation angle 0° / 15° / 30° Max. lifting height of basic boom 10100mm Max. lifting height of longest main boom 32405mm Max. lifting height of longest jib 40500mm Min. rated radius 3m Front axle carrying mass 12200kg Real axle carrying mass 12400kg Wheelbase 3600mm Wheelspan 2015mm Outrigger span：horizontal × vertical 6000×6350 (mm) Power System Engine model ISDe230 Engine rated power 169kW / 2500rpm Engine rated torque 900N.m / 1200~1700(rpm) Emission standard National Ⅲ Travel Parameters Max. traveling speed 60km/h Min. turning radius：2 wheel / 4 wheel 8.6 / 5.2 (m) Min. braking distance：24km/h ≤9.7m Fuel consumption per 100km 45L Min. ground clearance 400mm Approach angle 22.6° Departure angle 20° Max. gradeability 40% Operating Parameters Max. lifting speed of main winch single rope：idle load 110m/min Fully extending / Retracting time of lifting boom 80 / 140 (s) Raising / Lowering time of lifting boom 45 / 58 (s) Fully extending / Retracting time of horizontal outriggers 14 / 11 (s) Raising / Lowering time of vertical outriggers 28 / 23 (s) Max. slewing speed ＜2.6r/min
